BeamBox A0 LED Light Table

The A0 BeamTable LED light table provides a large, illuminated surface for various applications including inspection, quality control assessment, and design work. This table is designed for durability and efficiency, featuring a toughened glass top for safety when working with heavy-duty materials and tools. The integrated illuminated dimmer switch, with a brushed stainless steel finish button, allows for precise control of the even light spread.

Beam Box A0 light table for large-scale professional projects.

This A0 Orchard lighting table is mounted on a sturdy steel frame, which can be equipped with locking castors for easy mobility. The light table is powered by low voltage, which means it runs cool even after extended use, making it a reliable and safe choice for your workspace. Additionally, it is completely sealed, protecting it from dust and splashes.

Custom versions of the A0 BeamTable are available upon request, making it a versatile option for a wide range of industries and projects. Whether you need it for inspection, design work, or any other application, the A0 BeamTable LED light table is an excellent choice for your workspace. Contact us to discuss your specific requirements and let us help you create the perfect light table for your needs.

  • Working Area 1220 x 860mm Edge-To-Edge Screen
  • Paper Size A0

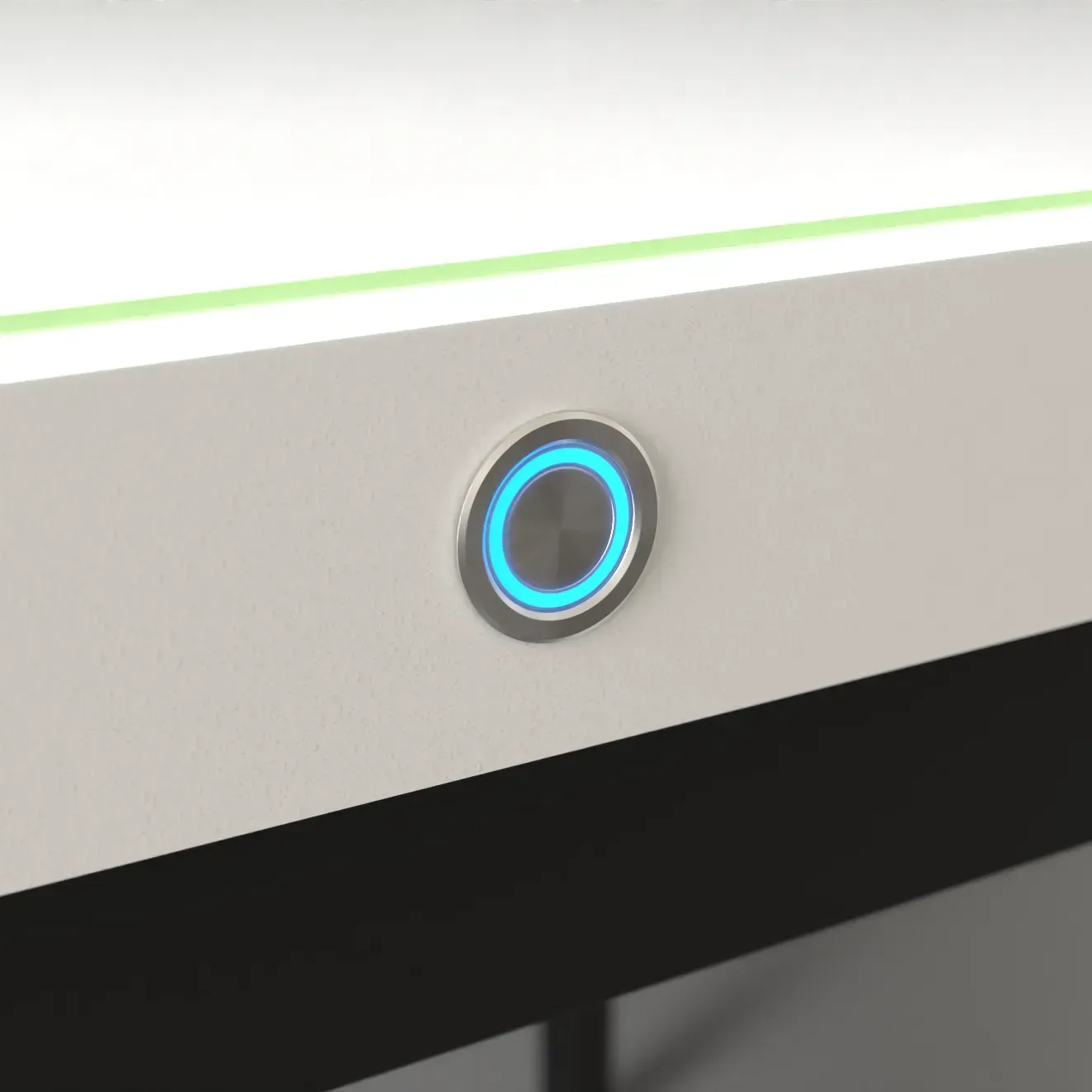

  • Switch Stainless touch sensitive & illuminated
  • Dimming Step-less brightness control 10 - 100%
  • Memory Function āœ“
  • Total Light Power 12,590 lumens
  • Screen Brightness 12,000 LUX / 3,820 nits
  • Screen Toughened Glass
  • Light Source Rear-lit LED
  • Light Output 5500K - 6000K (Pure White)
  • Light Wavelength500 - 545nm
  • LED life-span 50,000 hour
  • Weight 45kg
  • Table Height 830mm
  • Power Supply 24V Mains power supply included
  • Max. Power Usage 170W
  • Ingress Protection IP64

Can I have a different height table?
Yes. We make them to order and slight changes to the height (+ / - 300mm) will not change the price. We can supply height adjustable table frames, contact us for details. 01924 291333.

How bright is it?
Very. You can easily illuminate through 450gsm card. Thankfully the dimmer provides fine control over the light intensity making it comfortable to use for extended periods.

Does it come with a power supply?
Yes. An external 24V desktop power supply is provided and fitted with a UK plug as standard. We can supply different plugs if required; we will confirm with you if your delivery address is outside the UK.

Do I need a glass screen?
Large format light tables benefit from the strength that a toughened glass screen provides. If you do not want a glass screen then please contact us to discuss options. Call 01924 291333.


Got a question? Contact us here

A0 BEAM LED Light Box
A0 BEAM LED Light Box

Free UK Delivery āœ“
  • Working Area 1220 x 860mm Edge-To-Edge Screen
  • Paper Size A0
  • Weight 28.3kg
  • Dimming Stepless brightness control 10 - 100%
  • Memory Function āœ“
  • Total Light Power 12,590 lumens
  • Screen Brightness 12,000 LUX / 3,820 nits
  • Screen Toughened Glass
  • Light Source Rear-lit LED
  • Light Output 5500K - 6000K (Pure White)
  • Light Wavelength500 - 545nm
  • LED life-span 50,000 hour
  • Power Supply 24V 7A
  • Max. Power Usage 170W
  • Ingress Protection IP64

£1194.00Inc. £199.00 VAT
Select

A0 BEAM Pro LED Light Table
A0 BEAM Pro LED Light Table

Free UK Delivery āœ“
  • Working Area 1220 x 860mm Edge-To-Edge Screen
  • Paper Size A0
  • Dimming LCD Control 10 - 100%
  • Memory Function āœ“
  • Weight 55kg
  • Table Height 830mm
  • Total Light Power 23,200 lumens
  • Max. Brightness 21,000 LUX / 7,000 nits šŸ˜ŽšŸ˜Ž
  • Screen Toughened Glass
  • Light Source Rear-lit LED
  • Light Output 5500K - 6000K (Pure White)
  • Light Wavelength500 - 545nm
  • LED life-span 50,000 hour
  • Power Supply 24V 12A (IP67)
  • Max. Power Usage 270W
  • Ingress Protection IP64

£1830.00Inc. £305.00 VAT
Select

A0 BEAM Lab LED Light Table
A0 BEAM Lab LED Light Table

Free UK Delivery āœ“
  • Working Area 1220 x 860mm Edge-To-Edge Screen
  • Paper Size A0
  • Construction Stainless Steel
  • Dimming LCD Control 10 - 100%
  • Memory Function āœ“
  • Weight 55kg
  • Table Height 830mm
  • Total Light Power 23,200 lumens
  • Max. Brightness 21,000 LUX / 7,000 nits šŸ˜ŽšŸ˜Ž
  • Screen Toughened Glass
  • Light Source Rear-lit LED
  • Light Output 5500K - 6000K (Pure White)
  • Light Wavelength500 - 545nm
  • LED life-span 50,000 hour
  • Power Supply 24V 12A (IP67)
  • Max. Power Usage 270W
  • Ingress Protection IP66

£3354.00Inc. £559.00 VAT
